# A quick and easy function to plot lm() results with ggplot2 in R

Updated Apr 2015:

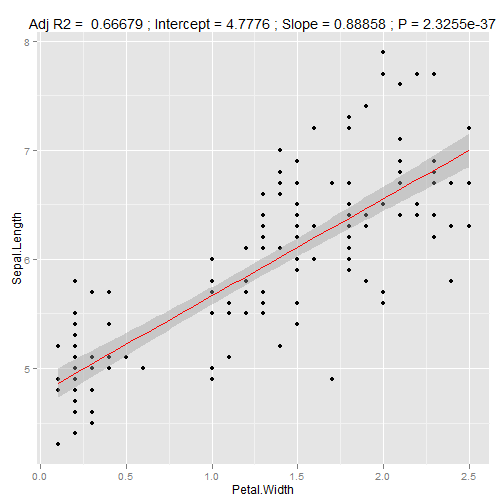

Sometimes it's nice to quickly visualise the data that went into a simple linear regression, especially when you are performing lots of tests at once. Here is a quick and dirty solution with ggplot2 to create the following plot: Let's try it out using the `iris` dataset in R:

``````data(iris)
``````
``````##   Sepal.Length  Sepal.Width  Petal.Length  Petal.Width    Species
## 1     5.1           3.5          1.4           0.2         setosa
## 2     4.9           3.0          1.4           0.2         setosa
## 3     4.7           3.2          1.3           0.2         setosa
## 4     4.6           3.1          1.5           0.2         setosa
## 5     5.0           3.6          1.4           0.2         setosa
## 6     5.4           3.9          1.7           0.4         setosa
``````

Create `fit1`, a linear regression of Sepal.Length and Petal.Width. Normally we would quickly plot the data in R base graphics:

``````fit1 <- lm(Sepal.Length ~ Petal.Width, data = iris)
summary(fit1)
``````
``````##
## Call:
## lm(formula = Sepal.Length ~ Petal.Width, data = iris)
##
## Residuals:
##    Min       1Q      Median     3Q       Max
## -1.3882   -0.2936   -0.0439   0.2643   1.3452
##
## Coefficients:
##               Estimate Std. Error t value Pr(>|t|)
## (Intercept)    4.7776    0.0729    65.5   <2e-16 ***
## Petal.Width    0.8886    0.0514    17.3   <2e-16 ***
## ---
## Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 0.478 on 148 degrees of freedom
## Multiple R-squared: 0.669, Adjusted R-squared: 0.667
## F-statistic: 299 on 1 and 148 DF, p-value: <2e-16
##
``````

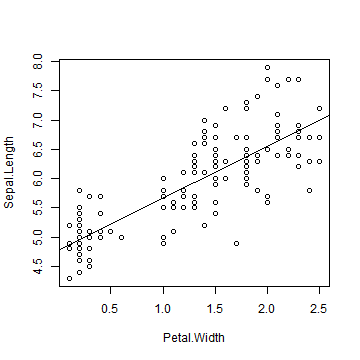

``````plot(Sepal.Length ~ Petal.Width, data = iris)
abline(fit1)

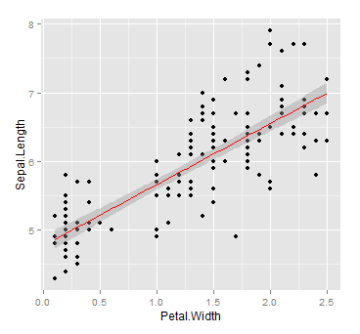

`````` This can be plotted in ggplot2 using `stat_smooth(method = "lm")`:

``````
library(ggplot2)

ggplot(iris, aes(x = Petal.Width, y = Sepal.Length)) +
geom_point() +
stat_smooth(method = "lm", col = "red")
`````` However, we can create a quick function that will pull the data out of a linear regression, and return important values (R-squares, slope, intercept and P value) at the top of a nice ggplot graph with the regression line.

``````ggplotRegression <- function (fit) {

require(ggplot2)

ggplot(fit\$model, aes_string(x = names(fit\$model), y = names(fit\$model))) +
geom_point() +
stat_smooth(method = "lm", col = "red") +
"Intercept =",signif(fit\$coef[],5 ),
" Slope =",signif(fit\$coef[], 5),
" P =",signif(summary(fit)\$coef[2,4], 5)))
}
``````

After specifying this function, all you would have to run is:

``````fit1 <- lm(Sepal.Length ~ Petal.Width, data = iris)
ggplotRegression(fit1)
``````

or even just

``ggplotRegression(lm(Sepal.Length ~ Petal.Width, data = iris))`` Disclaimer: This is not suitable for non-normal distributions or categorical variables!
